What Is An X.509 Certificate?

X.509 Certificates Explained

X.509 is the cornerstone of Public Key Infrastructure (PKI). While many people associate these certificates solely with the "padlock" icon in a web browser, their utility extends far beyond website security. The standard defines the format for public-key certificates, attribute certificates, and certificate revocation lists (CRLs).

An X.509 certificate uses asymmetric cryptography. Every certificate is paired with a private key that is kept secret by the owner. The certificate itself contains the public key, which anyone can see.

When a client connects to a server, the server presents its X.509 certificate. The client then checks the digital signature on that certificate. If the signature is valid, the issuing CA is trusted, the certificate's subject or SAN matches the expected hostname, and the certificate is within its validity period, the client can trust the connection.

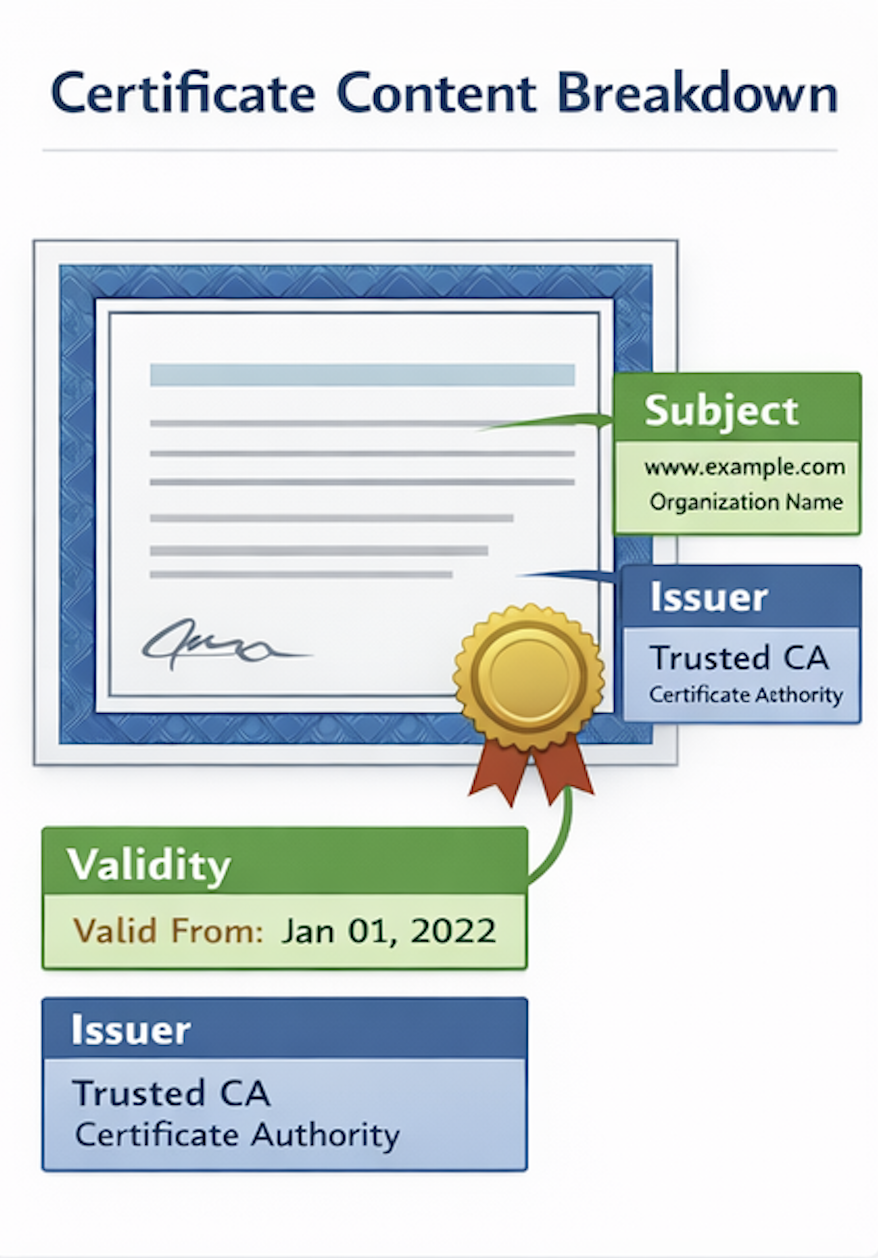

The Anatomy Of An X.509 Certificate

To ensure that different systems can read and process identity data, the X.509 standard requires a specific set of fields. Modern certificates generally follow the v3 format, which allows for custom extensions.

X.509 Certificate Fields

Important X.509 v3 Extensions

While the standard X.509 fields provide the basic identity framework, the v3 extensions enable these certificates to meet the complex requirements of modern digital ecosystems.

These extensions provide the flexibility to add additional attributes, such as alternative hostnames, specific usage constraints, and policy identifiers, that guide how an application or operating system should process and trust the certificate.

By defining these extra layers of metadata, organizations can tailor certificates for highly specific roles, from securing a single web server to authenticating millions of IoT devices:

1. Subject Alternative Name (SAN): Allows a certificate to secure multiple hostnames.
2. Key Usage: Defines the technical purpose of a key, such as digital signature or key encipherment.
3. Extended Key Usage (EKU): Provides specific purposes, such as server authentication or code signing.

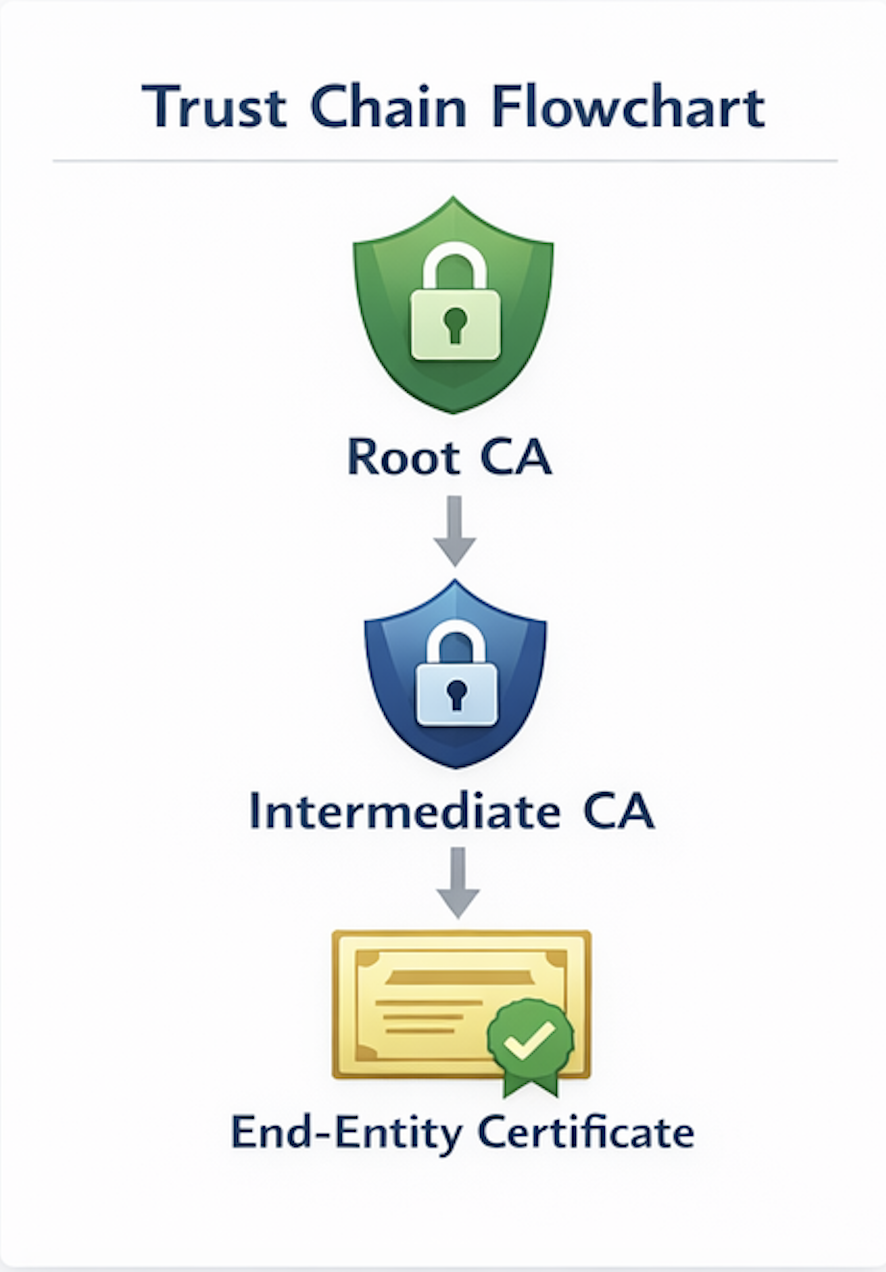

The X.509 Trust Hierarchy And Chain

Trust is not inherent in an X.509 certificate; it is inherited from a parent entity. This creates a chain of trust.

• Root Certificates: Self-signed certificates owned by a certificate authority that are pre-installed in "trust stores" on operating systems and browsers.
• Intermediate Certificates: Act as buffers between the root and the end-user. If an intermediate certificate is compromised, the root remains safe.
• End-Entity Certificates: Certificates that are issued to your website, server, or device.

When a device validates a certificate, it follows the chain of signatures up to a trusted root. This process is essential for maintaining cloud security and preventing attackers from spoofing identities through lateral movement.

Common Uses For X.509 Standard Certificates

The X.509 standard is versatile, supporting a range of security requirements across the enterprise.

1. Web Security (SSL/TLS): The most visible use is protecting data in transit between browsers and servers.
2. Email Encryption (S/MIME): Allows users to digitally sign and encrypt emails to prevent tampering.
3. Code Signing: Software developers use certificates to sign their applications, proving the code has not been altered by a third party.
4. Client Authentication: Instead of passwords, systems use certificates to identify users or machines trying to access a network.
5. Secure Boot: Firmware verifies digital signatures on bootloaders and OS components using trusted keys, often stored as X.509 certificates in the UEFI key database.

Machine Identity And Management Challenges

In the era of microservices and IoT, the number of machines requiring identities has exploded. Every container, virtual machine, and smart device needs a unique X.509 certificate to participate in a secure network.

Unit 42 research indicates that many organizations struggle with "certificate sprawl," in which unmanaged or expired certificates cause service outages.

Risks Of Poor Certificate Management

• Outages: Expired certificates cause browsers to block sites and keep applications from communicating.
• Compromised Keys: If a private key is stolen, an attacker can impersonate the machine and escalate privileges
• Weak Algorithms: Older certificates that use deprecated algorithms, such as SHA-1, are vulnerable to collision attacks.

To mitigate these risks, organizations should scope certificates narrowly: limit Subject Alternative Names, constrain Key Usage and Extended Key Usage, and apply least privilege to the identities those certificates represent.

Zero Trust And X.509 Alignment

X.509 certificates are fundamental to a zero trust architecture. In a zero trust model, "trust nothing, verify everything" is the rule. This requires strong identity security for every connection.

How Does X.509 Support Zero Trust?

In a Zero Trust architecture, the traditional "castle-and-moat" security model is replaced by a philosophy of continuous verification. Because Zero Trust assumes that the network is already compromised, it requires every user, device, and application to prove its identity before granting access to resources.

X.509 certificates are one of the most widely used mechanisms for this verification, providing standardized, cryptographic identity proof and encrypted communications. By moving security controls away from static IP addresses and toward dynamic, certificate-based identities, organizations can build a more resilient defense against modern threats.

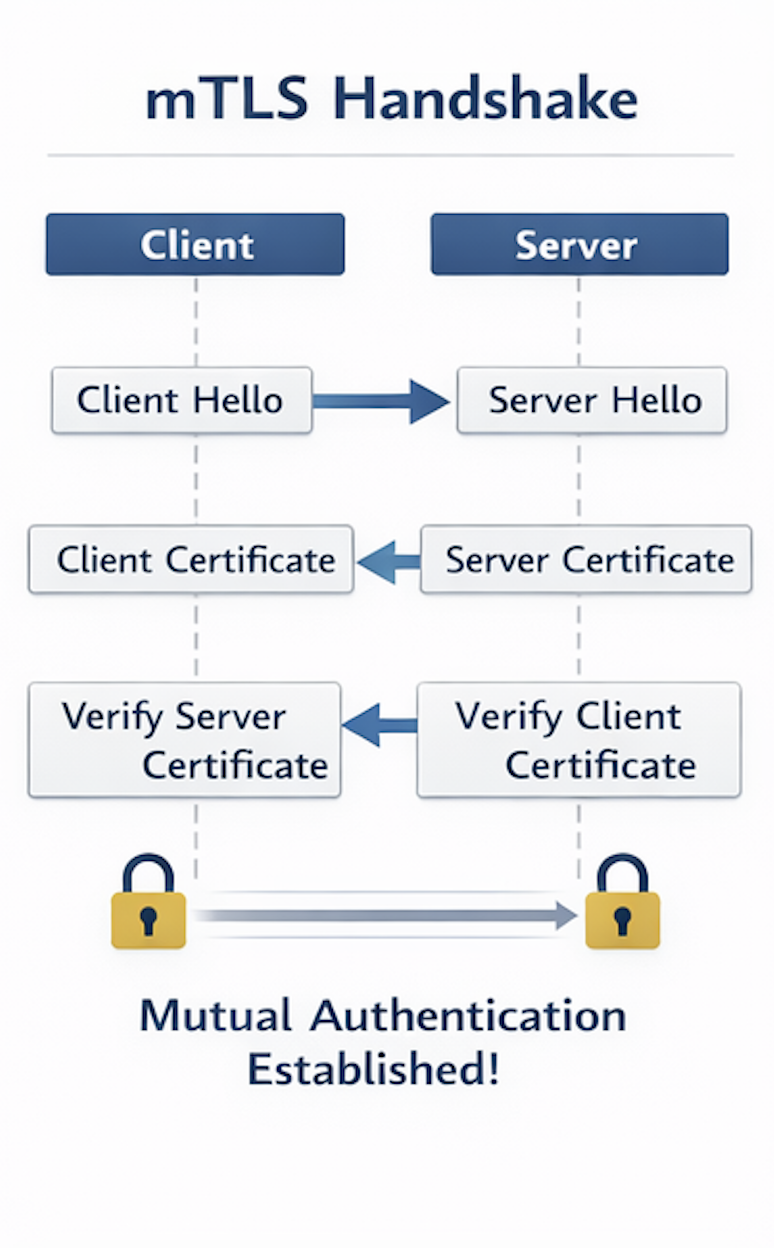

• Mutual TLS (mTLS): Both the client and the server must present certificates to each other. This ensures that both parties are authenticated before any data is exchanged.
• Microsegmentation: By using certificates to identify specific workloads, security teams can enforce network segmentation policies that prevent unauthorized lateral movement between servers.
• Short-Lived Certificates: Reducing the validity period of certificates minimizes the window of opportunity for an attacker if a key is compromised.
